F5 Container Connector
Dynamic Application Services Integration for Containerized Environments


F5 Container Connector

F5 Networks Products
BIG-IP Products
F5 Container Connector
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

What’s Inside

  • Containerized Environments Offer Agility
  • Dynamic Application Services for PaaS and Containers
  • Self-Service Selection and Automated Event Discovery
  • Scalability and Security with App Services Insertion
  • Faster Deployment and End-to-End Visibility

More organizations are adopting containerized environments to develop and package applications. These organizations also use management and orchestration frameworks to coordinate provisioning and automation of containers. In order to meet user demands and reduce operational expenses, developers must be able to easily configure application services in containerized environments. According to a Container Management and DevOps report from EMA, the top three use cases for containers noted by respondents are: modernize existing apps (45%), build cloud-native apps (39%), and lift-and-shift traditional apps unchanged (16%).

F5 Container Connector is a container integration open-source solution that helps developers and system teams manage Ingress HTTP routing, and load-balancing, and application services in container and Platform as a Service (PaaS) deployments. Container Connector integrates with native container environments such as Kubernetes and Mesos, and PaaS container orchestration and management systems, such as RedHat OpenShift and Pivotal Cloud Foundry. It also offers integrated automation of application performance, routing, and security services during development for a faster time to market. Container Connector provides self-service selection across the network with F5 BIG-IP solutions. BIG-IP provides a rich set of network and app stats for data stream export to visibility and observability solutions for tracing and root cause analysis.

Key Benefits

Dynamic application services for PaaS and containers
Container Connector integrates with container environments such as Kubernetes and Mesos, and PaaS container systems such as RedHat OpenShift and Pivotal Cloud Foundry for managing container application services.

Self-service selection and automated event discovery
Container Connector enables self-service Ingress HTTP routing and app services selection. It subscribes to events and automatically configures performance, routing, and security services on BIG-IP. In addition, it enables greater flexibility and usability with pre-existing policies and profiles for OpenShift Routes, and annotations to rewrite target URLs for Kubernetes Ingress.

Scalability and security with app services insertion
Integrate Container Connector with the BIG-IP platform to scale apps for availability, and enable app services insertion. In addition, integrate with the BIG-IP system for Ingress load balancing and app protection services.

Faster deployment and end-to-end visibility
Speed deployments with predefined BIG-IP templates and obtain visibility, observability, and analytics through data stream export to third-party solutions for fast resolution of anomalies and on-demand statistics.

Containerized Environments Offer Agility

Developers and system teams are turning to container frameworks for greater agility and flexibility, while using agile methodology to code apps at a faster pace. Architects need to deliver a better user experience, and are looking for efficient deployment and code fixes. A Portworx Survey asked IT professionals about the main business benefits of container technology. Respondents chose greater agility (75%), lower cost (52%), and higher performance (40%). System teams, app developers, and network operations want more agility and lower costs, and need container services solutions to deliver flexible deployments and reduce the amount of resources utilized.

Self-Service Selection and Automated Event Discovery

Scale your container architectures to meet application demands. Container Connector allows you to deploy self-service Ingress control for system and app development teams within PaaS and container environments. Your DevOps process teams can subscribe to events to create, scale, and remove application services. For instance, teams can be notified of an event; tag their app with F5 performance, routing, and security services within the GUI or API; and add an additional label to their app for services insertion. Container Connector enables Blue/Green deployments in RedHat OpenShift for multiple app versions in production at the same time for scaling and moving to newer applications. In addition, it provides A/B management in OpenShift of two or more app versions for development and testing at the same time. Finally, Container Connector enables greater flexibility and usability with pre-existing policies and profiles for OpenShift Routes, and annotations to rewrite target URLs for Kubernetes Ingress.

With self-service application routing and security enabled, BIG-IP app performance and security services are easily implemented—with an additional label within the container UI for app scale, availability, and security. Automated event discovery occurs when the app is created and a virtual server and pool are automatically added to the BIG-IP platform—in the system team or app developer partition for Ingress control.

Scalability and Security with App Services Insertion

Container Connector integrates to your container orchestration and F5 application performance and security services—helping you scale out apps through PaaS and containerized environment integrations, automate discovery of app instances, and add app services insertion for workloads. This improves the developer and user experience through integration with native application deployment workflows. It also allows you to deploy a broader set of F5 application services into new distributed architectures.

Faster Deployment and End-to-End Visibility

F5 offers faster application deployments with predefined BIG-IP templates for simplified policy management. Easily configure PaaS and container integrations with Ingress control services using standardized templates, delivering consistent policies across established and emerging app architectures. BIG-IP allows you to achieve complete visibility and observability of all container traffic and enhance app insights through data-stream export to analytics platforms such as Splunk. They deliver a rich set of L4–7 stats in a third-partycompatible and SIEM format for timely export and analytical reporting.

You can deploy Helm charts for Container Connector consumability that showcase a way to package, version, and consume Kubernetes resources. This simplifies application deployments, upgrades, composability, and deployment reproduction. Finally, F5 enables easy integration into overlay technology such as OpenShift SDN, Flannel VXLAN and HostGW, and Calico for fast cluster networking. This offers a fast selection of connector options to meet your container overlay requirements.

Features:

  • Runs in Kubernetes, Red Hat OpenShift, Pivotal Cloud Foundry, and Mesos.
  • Subscribes to PaaS and container events to create, scale, and remove app services.
  • Enables Ingress HTTP and URI routing for application services selection along with mapping rules, and health monitoring.
  • Simplifies deployment and policy management with predefined templates.
  • Dynamically configures and manages the virtual server, pool members, health monitoring, Ingress load balancing, and other app services on the BIG-IP platform.
  • Enables Blue/Green and A/B traffic management for multiple app versions.
  • Attach pre-existing policies and profiles for OpenShift Routes.
  • Allows ingress annotations to rewrite target URLs in Kubernetes.
  • Showcases Helm chart consumption simplifying Kubernetes application deployments and upgrades.
  • Exports data-stream metrics to third-party solutions for on-demand analytics.

Container Connector open-source software is available at no charge as a downloadable container at DockerHub. Container Connector is available for download on GitHub.

Deployment:

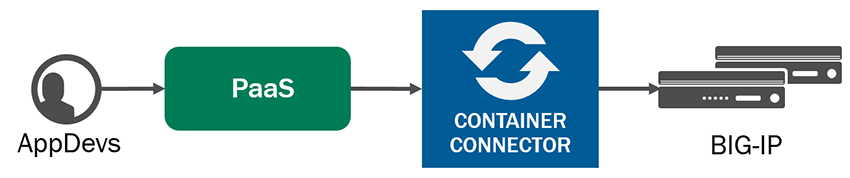

Dynamic Application Services for PaaS and Containers

Container Connector allows containerized environments to leverage the industry-leading BIG-IP platform to enable Ingress control services—including app routing, URI routing, and API versioning—in PaaS frameworks such as RedHat OpenShift and Pivotal Cloud Foundry, and Container environments such as Kubernetes and Mesos/Marathon. Container Connector integrates the BIG-IP platform with the container management and orchestration system control plane. System teams, app developers, and network operations now have automated Ingress load balancing integrated into the orchestration environment.

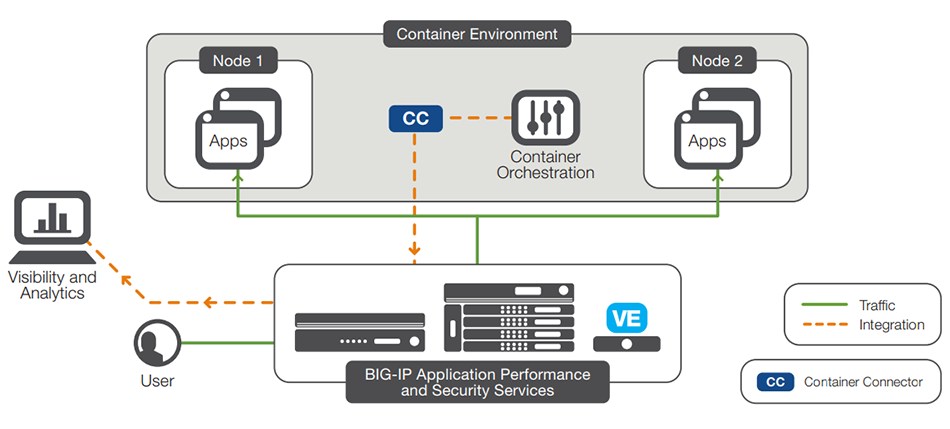

Dynamic Application Services for PaaS and Containers
F5 Container Connector deploys in container environments, enables self-service selection in orchestration, and subscribes to events to create, scale, and remove app services. You can also export your data streams for more in-depth visibility, observability, and analytics.

Services:

F5 Global Services

F5 Global Services offers world-class support, training, and consulting to help you get the most from your F5 investment. Whether it’s providing fast answers to questions, training internal teams, or handling entire implementations from design to deployment, F5 Global Services can help ensure your applications are always secure, fast, and reliable.

DevCentral

The F5 DevCentral user community of more than 300,000 members is your source for the best technical documentation, discussion forums, blogs, media, and more related to app services.

Documentation:

Download the F5 Container Connector Datasheet (.PDF)
